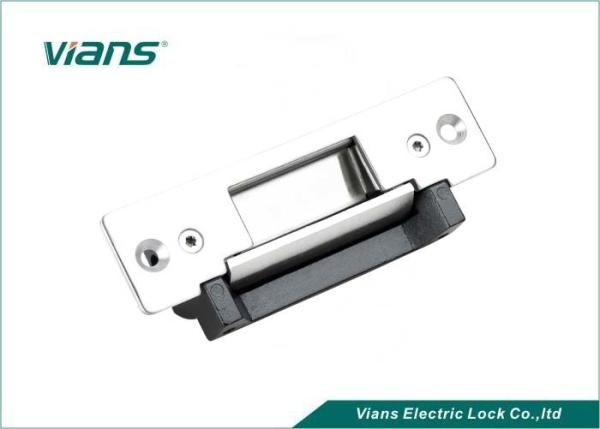

American Standard Stainless Steel DC12V Electric Strike Lock
Product Overview
The electric strike has the similar working principle as the electric bolt lock,it must work with the mechanical lock.
so the rang of application is small.And it's often used for ordinary wooden door,with the notch of strike sucking the
bolt of door,it can lock or open the door.By embedded installing,our products looks excellent.The electromagnetic
part is made of high quality magnetic material and of the strikes.Morover,our strikes can support the door with 90°
opened.At last,with hardness stainless steel material,our strike could bear 500kg impac pressure.
Product Feature
Strike lock could bear 800kg impact pressure.It also could used for wooden door,with the notch of strike sucking the bolt of door.
- 1. Bear 500kg impact pressure.
-
- 2. Special design, the lock bolt can adjust the distance.
-
- 3. It is especially suitable for the metal frame with hole for directly installation.
-
- 4. Pass the 500 000 times of aging test.
-
- 5. Products pass the CE, FCC and ROHS certification.
Product Picture
Product Parameter
| Product Parameter | Parameter Description |
| Lock Size | 124Lx32Wx33H(mm) |
| Certificate | CE/FCC/ROHS |
| Input Voltage | DC12V±10% |
| Working Current | 200mA |
| Opening Mode | 90 Degree Swing Door |
| Door Type Applicable | Wooden door , Glass door ,Metal door , Fireproof door |
| Time Delay | NO |
| Signal output | NO |
| Security Type | Locked when energized / open when energized |
| Opening Mode | 90 Degree Swing Door |
| Contact | Dry contact |
| Surface Temperature | Within +20°C |
| Material of Housing | Stainless steel |
| Weight | 0.4kg |
Installation drawing
