Unit parameter sheet:
| Model | Light type(VI-PW180) | |
| Torque force | 80Nm | |
| Arm Length | Short arm or long arm | |
| Max door width | 1.2m | |
| Max door weight | 100kg | |
| Installation type | Plug-in |
| Noise | ＜60dB |
| Elctroc lock output | 12V,500mA |
| Opening door speed | 3-8S | |
| Staying time | 1-30S |
| Power supply | 220V±10%,50Hz |
| Rated current | ＜1A |
| Max power | 45W | |
| Standby power | ≤6W |
| Operating temperature | -40～85℃ |
| Working life | Continuous operation 2 million times without failure |
| Protection level | IP66 |
| Unit size | 330×80×120mm |
Control box parameter sheet:
| Model | MPC-1100 |
| Opening door time | 3-8S Adjustable |
| Opening range | 45°- 135°Adjustable |
| Elctroc lock output | DC12V NO/NC contact |
| Power supply | 220V±10%,50Hz |
| Rated current | ＜1A |
| Standby power | ≤6W |
| Max power | 45W |
| Operating temperature | -40℃-85℃ |
| Control box size | 240×160×90mm |

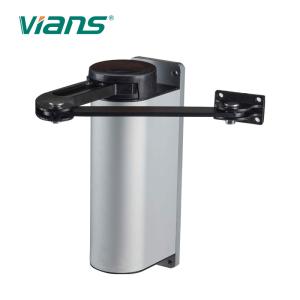

Details of Automatic Door Closer:
Optional accessories:
Application:
Company profile and factory
Shenzhen Vians Electric lock Co., Ltd is one of the leading of professional electric locks manufacturers in China, which was established in 2007.we are dedicated to Magnetic lock, Electric Bolt, Electric Strike, Electric rim lock, Magnetic Lock Bracket, Automatic door opener, Switch and so on. Vians is an integrated company with independent design, development, production, sales as well as services. Vians electric lock owns advanced production equipment. All of our products passed CE and the related quality inspection and test of ministry of Public Security by our country. They comply with international standards and security requirements. Now our products are widely used in airport, subway, banks, prisons, intelligent building, intelligent community and other important places. It provides convenient, fast, intelligent access management for the global customers. Compared with other company’s electric lock, we have more stable performance, more competitive price and more personalized service. So far our electric locks have been exported to more than 60 countries and areas successfully and have obtained an extensive recognition from clients in our domestic and abroad.
Company show
FAQ:
Q: How do I pay for my purchase?
A: we accept the payment methods as follow: cridet card; moneybooker;T/T;.
Q: How much does it cost to ship to my country?
A: Please tell us your receive goods address, we will check the shipping cost for your reference
Q: Is there any tracking Number for my item?
A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.
Q: Does this product come with retail package?
A: We have declared the packing detail on the description of each product, please check it, thank you!
Q: I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?
A: Hi,very glad to get your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
